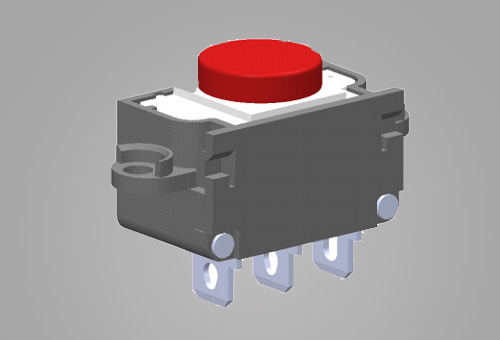

SS-006 Series is a one-pole, thermal-trip, manual reset, supplementary protector.
SS-006 电流过载保护开关是单极,热敏跳脱,手动复位,辅助保护器.
SS-006 TRIP FREE design. Will trip open when overload, even when forcibly held on, the operating handle(electric contact) moves forcibly and positively to the OfF position, power close completely and no return.安全的自由跳脱设计,当电流过载时电气接点跳脱,即使是强行地按住开关,操作结构(电气接点)也可以强行地且确实地跳开至OFF状态,电源完全切断且不再回复.
combines push switch and circuit protection on a single unit.
结合按键开关及电路保护在单一个产品上.
Standard ratings :4 to 16 amps or customized customer design is available.
标准电流规格从4 到16 amps 或按照客户规格设计生产.
Tripping character is adjustable according to the different products.
可依据不同产品做跳脱特性微调.
